Detail PUNDIT LAB Pundit PL-200 PE
Part : 32720001
The Pundit PL-200PE employs state-of-the-art pulse echo technology to extend the ultrasonic application to objects where access is restricted to a single side.
The measurement process is greatly assisted by Proceq innovations such as advanced echo tracking and automatic estimation of Pulse Velocity. The A-Scan Mode allows direct analysis of the raw signal and the real-time B-Scan Mode provides a cross-sectional view perpendicular to the scanning surface. The Area Scan enables slab thickness uniformity testing in grid patterns.
This allows the user to determine the slab thickness and to localize subsurface deformities such as voids, pipes, delaminations and honeycombing.
Control buttons and optical feedback directly on the probe increase measurement efficiency and make to instrument even more user-friendly.
Features
- Single side determination of slab thickness
- Detection and localization of voids, pipes, delaminations and honeycombing
- Advanced echo tracking technology helps identifying the main echo
- Area Scan for slab thickness uniformity testing in grid patterns
- Measure variations in tunnel lining thicknesses according to RI-ZFP-TU
- Control buttons and optical feedback directly on the probe increase measurement efficiency
- Automatic estimation of the Pulse Velocity
- Easy B-Scan measuring through center marker and rulers directly on the probev - Dry-contact transducer: no couplant required, suited for measuring on rough surfaces
- Lightweight and ergonomical handling
- Expandable with Pulse Velocity transducers.

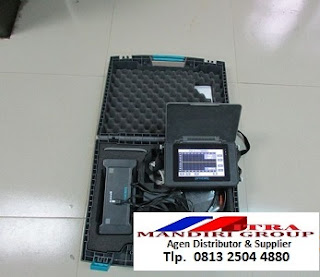

PUNDIT LAB Pundit PL-200 ( CO-550.14S)
Standardization
-EN12504-4 ( Europe)
-ASTM C 597-02 ( North America)
-BS 1881 Part 203 ( UK)
-ISO1920-7: 2004 ( International)
-IS13311 ( India)
- CECS21 ( China)
Part : 32710001
